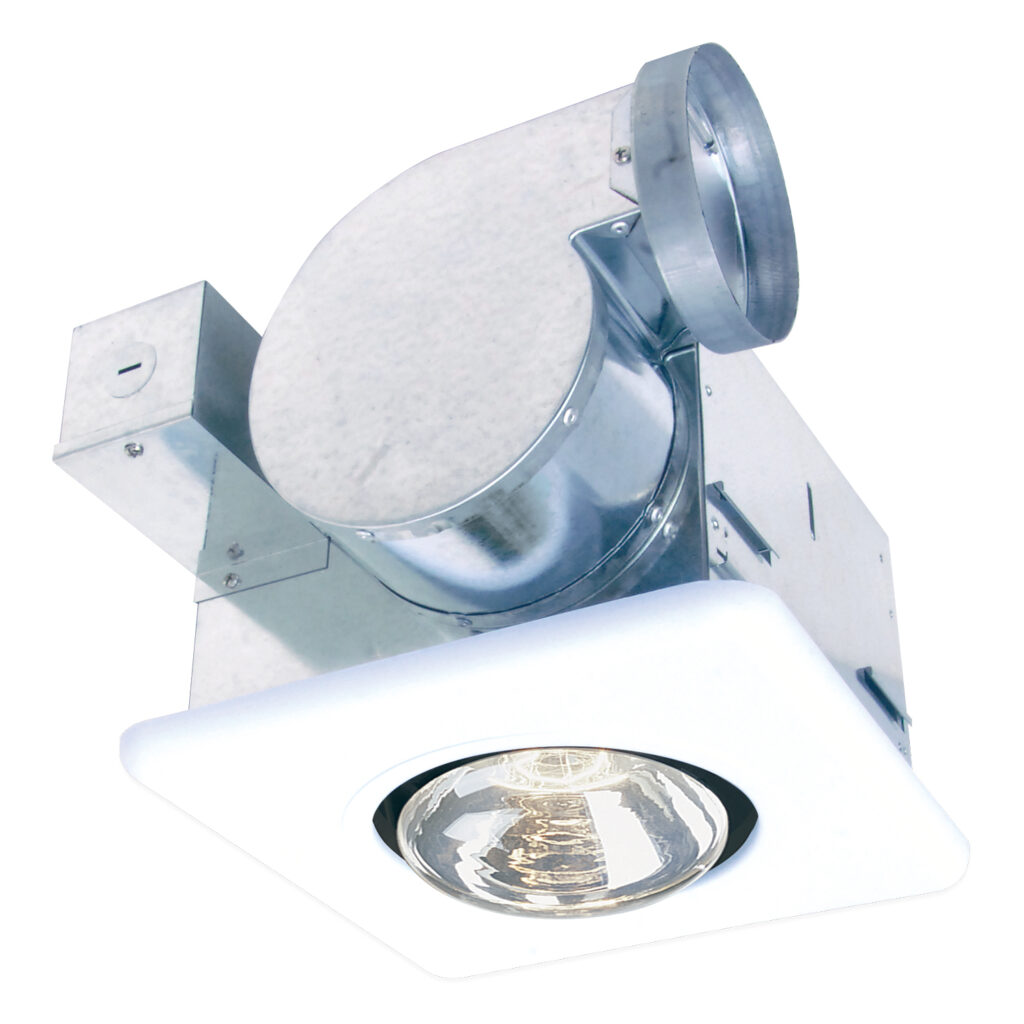

Air King’s AK917 bulb heater with exhaust fan provides effective ventilation for your home while adding silent warmth to the room. The bulb heater utilizes a single 250 watt maximum type R40 medium base infrared heat lamp (heat lamp is not included) to provide silent supplemental warmth to the room. The 70 CFM motor is permanently lubricated for years of worry free operation. The white low profile grill complements almost all decors. The unit easily installs using the included adjustable hanging brackets and the 4 inch round plastic duct connector with damper protects against backdrafts. The heat bulb and exhaust fan functions can be wired to operate separately. Perfect to exhaust small to mid size bathrooms while the heat lamp provide a focused heating area. Can not be used inside of showers or over tubs.
Bulb Heater with Exhaust Fan
Utilizes a single 250 watt maximum type R40 medium base infrared heat lamp (heat lamp is not included)
Rated type IC for ceilings insulated to R-40
The bulb heater with exhaust fan easily install using the included adjustable hanging brackets
4 inch round plastic damper protects against backdrafts and ensures quiet operation
All functions can be wired to operate separately
| Models | AK917 |
|---|---|
| Specification Sheet Download | AK917 |
| CFM | 70 |
| Sones | 3.5 |
| Sound Level | Moderate |
| Effective Ventilation Area | 70 to 85 sq. ft. |
| Lighting | 250 Watt R40 Infrared |
| Night Light | – |
| Heating Element | Bulb |
| Included Switches | – |
| ASHRAE 62.2 Ventilation | – |
| ENERGY STAR® certified | No |
| Can be used to Comply with California Title 24 requirements | No |
| CALGreen | No |
| Duct Size | 4″ round |
| Collar / Damper | Plastic |
| Mounting | Hanger Bars |
| Housing | Metal |
| Dimensions |  |
Download Specification Sheet:
AK917
Exhaust Fan Housing
Blower (motor)
Damper and Duct Collar
Grill
Hanger Bars
User Manual
