Air King’s ENERGY STAR® certified SNAP-IN installation exhaust fans with included LED light provide quiet, effective and affordable ventilation for your bathroom, laundry room, powder room or other areas of the home needing ventilation. The energy efficient motor is suitable for continuous operation and can be used to comply with ASHRAE 62.2 standards. The unit easily installs using the included SNAP-IN mounting system and the 4 inch round plastic duct connector with damper protects against backdrafts and ensures quiet operation. The white grill complements almost all decors while the plastic light lens disperses light evenly throughout the room. The exhaust fan is approved for installation over a tub or shower on a GFCI circuit and is HVI Certified. Perfect for use in smaller bathrooms and powder rooms.
Excellent ASHRAE 62.2 solution (learn more)
ENERGY STAR® certified (learn more)
Can be used to comply with the ventilation standards required by LEED for Homes (learn more)
Included, 6 watt LED lamp
Snap-In Installation exhaust fans with LED light easily install using the SNAP-IN Mounting System.
Approved for installation over a tub or shower on a GFCI circuit.
4 inch round duct collar with a plastic damper protects against backdrafts and ensure quiet operation.
HVI Certified performance.
| Models | BFQL50 | BFQL70 |
|---|---|---|
| Specification Sheet Download | BFQL50 | BFQL70 |
| CFM @ .1 SP | 50 | 70 |
| CFM @ .25 SP | 44 | 58 |
| Sones @ .1 SP | 0.8 | 2.0 |
| Sound Level | Very Quiet | Quiet |
| Watts | 17.8 | 22.6 |
| Effective Ventilation Area | 50 to 60 sq. ft. | 70 to 85 sq. ft. |
| Lighting | 6 Watt 450 Lumens 75 Lumens/Watt | 6 Watt 450 Lumens 75 Lumens/Watt |
| ASHRAE 62.2 Ventilation | Whole House/ Local | Local |
| ENERGY STAR® certified | YES | YES |
| Duct Size | 4″ round | 4″ round |
| Collar / Damper | Plastic | Plastic |
| Mounting | SNAP-IN Bracket | SNAP-IN Bracket |
| Housing | ABS Plastic | ABS Plastic |

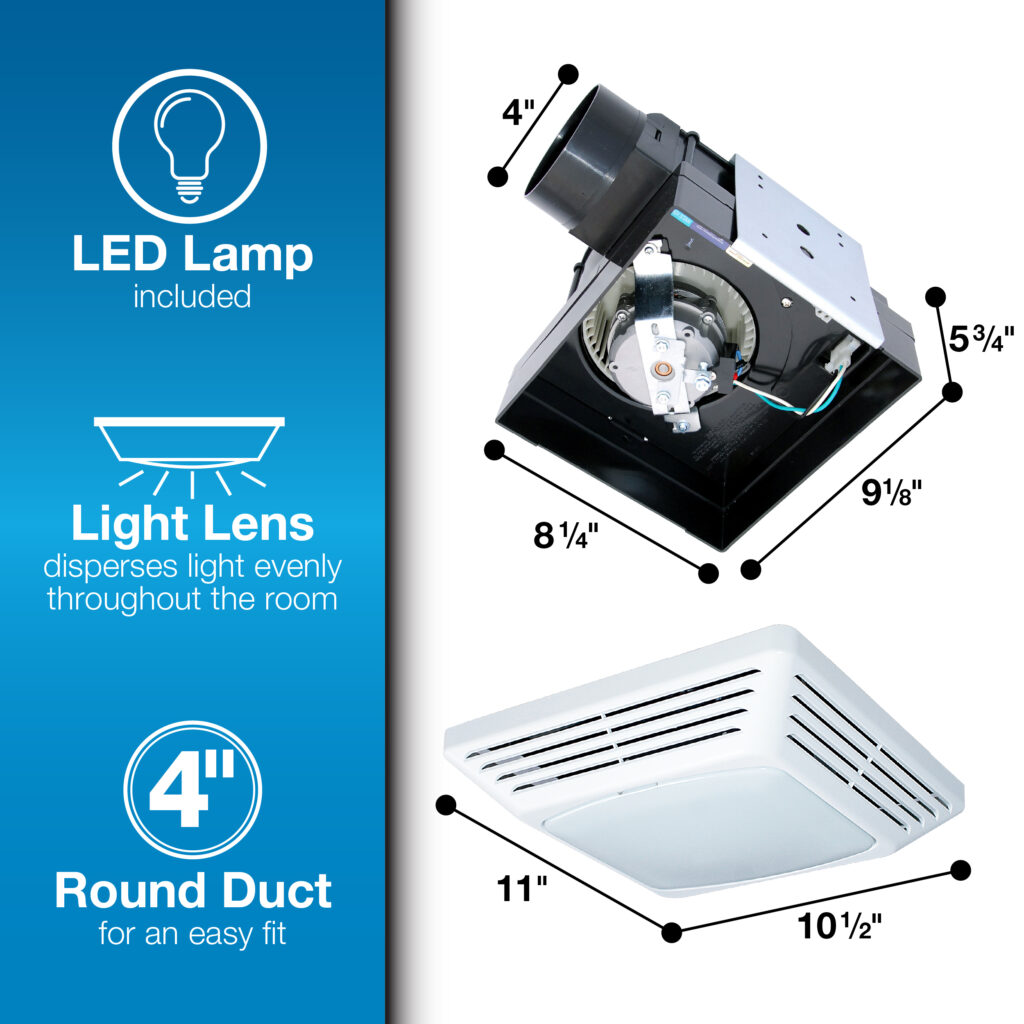

| Dimensions |  |
|
Exhaust Fan Housing
Blower (motor)
Grill with Light Lens
6 Watt LED Lamp
SNAP-IN Mounting Bracket
Damper and Duct Collar
User Manual
