Air King’s ENERGY STAR® certified SNAP-IN installation exhaust fans provide quiet, effective and affordable ventilation for your bathroom, laundry room, powder room or other areas of the home needing ventilation. The energy efficient motor is suitable for continuous operation and can be used to comply with ASHRAE 62.2 standards. The unit easily installs using the included SNAP-IN mounting system and the 4 inch round plastic duct connector with damper protects against backdrafts and ensures quiet operation. The white, low profile plastic grill is unobtrusive and complements almost all decors. The exhaust fans are approved for installation over a tub or shower on a GFCI circuit and are HVI Certified. Perfect for use in smaller bathrooms and powder rooms.
Excellent ASHRAE 62.2 solution (learn more)
ENERGY STAR® certified (learn more)
Can be used to comply with California Title 24 requirements (learn more)
Can be used to comply with the ventilation standards required by LEED for Homes (learn more)
Snap-In installation exhaust fans easily install using the SNAP-IN Mounting System.
Approved for installation over a tub or shower on a GFCI circuit.
4 inch round duct collar with a plastic damper protects against backdrafts and ensure quiet operation.
Available in contractor packs (4 housings and 4 trim kits).
HVI Certified performance.
This product meets the Made in America requirements of the American Recovery and Reinvestment Act as a manufactured Good. To download the Guidance PDF
| Models | BFQ50 | BFQ75 |
|---|---|---|
| Specification Sheet Download | BFQ50 | BFQ75 |
| CFM @ .1 SP | 50 | 70 |
| CFM @ .25 SP | 36 | 55 |
| Sones @ .1 SP | 0.6 | 2.0 |
| Sound Level | Very Quiet | Quiet |
| Watts | 17.4 | 23.5 |
| Effective Ventilation Area | 50 to 60 sq. ft. | 70 to 85 sq. ft. |
| ASHRAE 62.2 Ventilation | Whole House/ Local | Local |
| ENERGY STAR® certified | YES | YES |
| Can be used to Comply with California Title 24 requirements | YES | YES |
| CALGreen | Rooms other than bathrooms | Rooms other than bathrooms |
| Duct Size | 4″ round | 4″ round |
| Collar / Damper | Plastic | Plastic |
| Mounting | SNAP-IN Bracket | SNAP-IN Bracket |
| Housing | ABS Plastic | ABS Plastic |

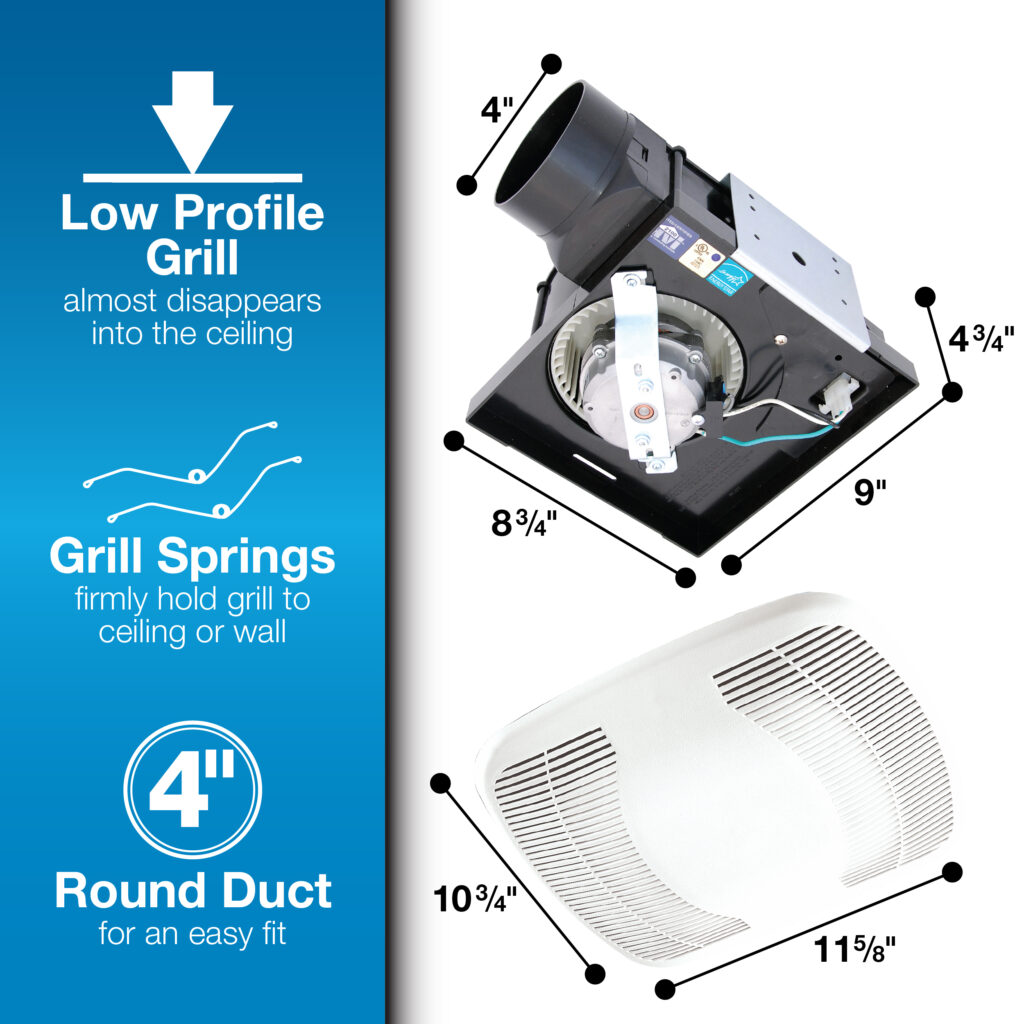

| Dimensions |  |
|
Exhaust Fan Housing
Blower (motor)
Grill
SNAP-IN Mounting Bracket
Damper and Duct Collar
User Manual
