Air King’s ENERGY STAR® certified ECO humidity sensing exhaust fans provide efficient and effective ventilation at barely audible sound levels for bathrooms, laundry rooms and other areas of your home needing ventilation. The integrated humidistat senses the humidity level of the room and turns the fan on until the humidity level is below the preset percentage. Humidity level can be set up to 80% relative humidity. The energy efficient motor is suitable for continuous operation and can be used to comply with ASHRAE 62.2 standards. The unit easily installs using the included adjustable hanging brackets and the 6 inch round metal duct connector with gasketed damper protects against backdrafts and seals the duct better than any other damper on the market today. The white, low profile plastic grill is unobtrusive and complements almost all decors. A side access panel allows you to wire the fan from inside or outside the housing. The ECO humidity sensing exhaust fans are UL listed for installation over a tub or shower on a GFCI circuit are HVI Certified, and can be used to comply with CALGreen.
Excellent ASHRAE 62.2 solution (learn more)
ENERGY STAR® certified (learn more)
Can be used to comply with California Title 24 requirements as well as CALGreen (learn more)
Can be used to comply with the ventilation standards required by LEED for Homes (learn more)
Integrated humidistat senses the humidity level of the room and turns the fan on until the humidity level is below the preset percentage. Humidity level can be set up to 80% relative humidity.
ECO humidity sensing exhaust fans easily install using the included adjustable hanging brackets.
UL listed for installation over a tub or shower on a GFCI circuit.
6 inch round duct connector with gasketed damper protects against backdrafts and seals the duct better than any other damper on the market today.
Side access panel allows you to wire the fan from inside or outside the housing.
HVI Certified performance.
This product meets the Made in America requirements of the American Recovery and Reinvestment Act as a manufactured Good. To download the Guidance PDF
| Models | E80SH | E130SH | ||
|---|---|---|---|---|
| Specification Sheet Download | E80SH | E130SH | ||
| CFM @ .1 SP | 80 | 130 | ||
| CFM @ .25 SP (Boost) | 84 | 113 | ||
| Sones @ .1 SP | <0.3 | <0.3 | ||
| Boost Speed (CFM/Sones) @ .1 SP | 110 / 0.7 | 150 / 0.7 | ||
| Sound Level | Very Quiet | Very Quiet | ||
| Maximum Power Watts | 37.0 | 37.0 | ||
| Effective Ventilation Area | 80 to 100 sq. ft. | 130 to 160 sq. ft. | ||
| ASHRAE 62.2 Ventilation | Whole House/ Local | Whole House/ Local | ||
| ENERGY STAR® certified | YES | YES | ||
| Can be used to Comply with California Title 24 requirements | YES | YES | ||
| CALGreen | Compliant for use in bathrooms or whole building ventilation | Compliant for use in bathrooms or whole building ventilation | ||
| Duct Size | 6″ round | 6″ round | ||
| Collar / Damper | Metal | Metal | ||
| Mounting | Hanger Bars | Hanger Bars | ||
| Housing | Metal | Metal | ||
| Dimensions |  |
|||

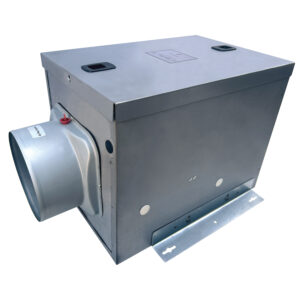

Exhaust Fan Housing with Integrated Humidistat
Blower (motor)
Hanger Bars for Mounting
Damper and Duct Collar
Grill
User Manual
