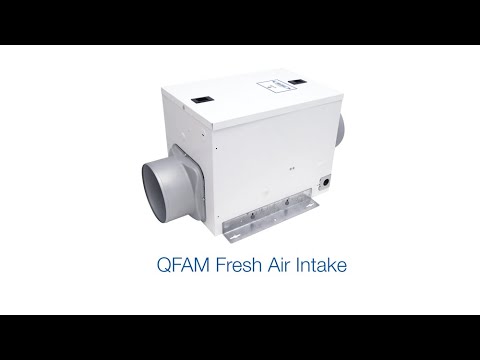

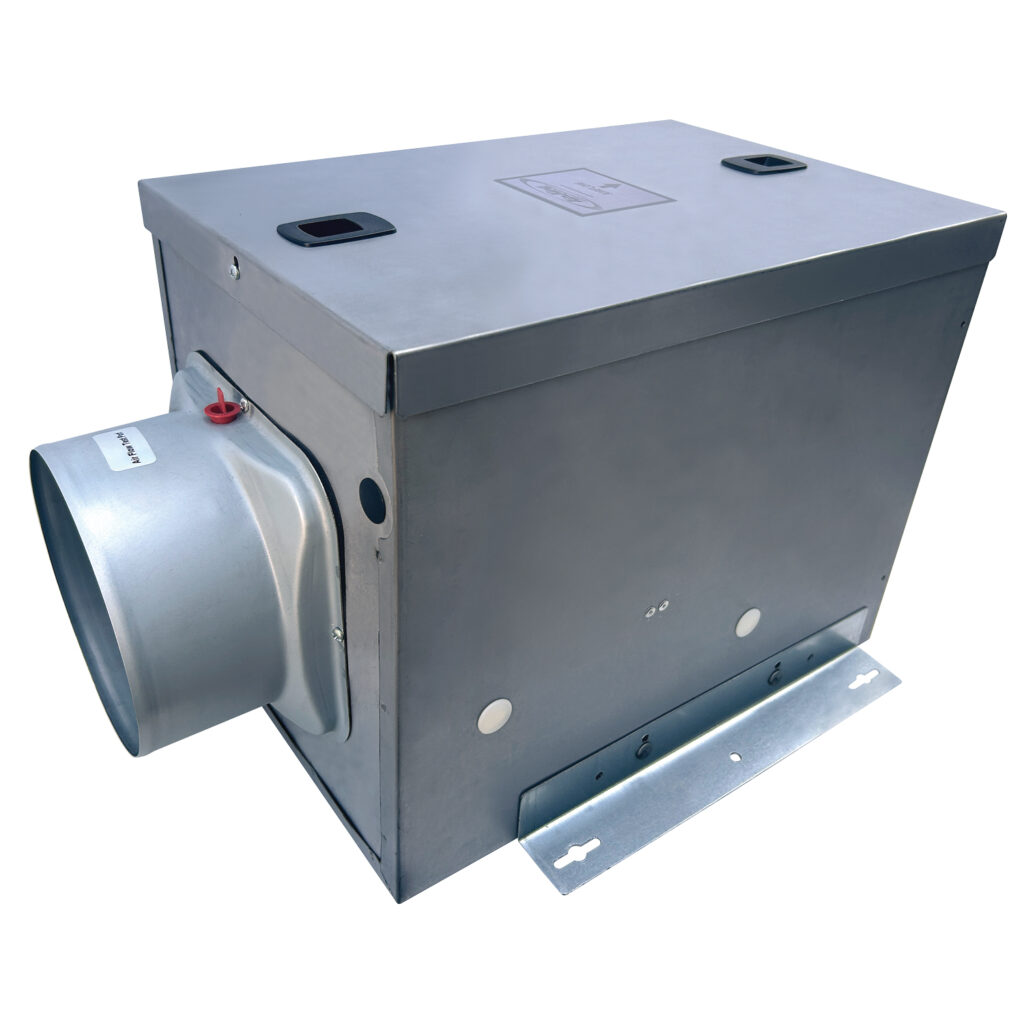

QFAM Fresh Air Machine

MODEL
  • QFAMD: 30 to 130 CFM
  • QFAM: 40 to 120 CFM

Details

The QuFRESH by Air King offers home builders and developers a cost effective mechanical fresh air solution that helps with humidity and temperature. Contractors and builders now have a practical offering for introducing constant fresh air from outside into the residence, meeting the fresh air CFM requirements. Internally mounted sensors provide limits preventing the intake of outdoor air that is too humid, too hot, too cold or too dry. The operator simply dials in the quantity (CFM) of fresh air needed from the quiet energy efficient fan and sets the desired intake levels for the outside humidity and temperature.

INSTALLATION

  • Fully assembled, screw it to the wall, connect power & ductwork, you’re ready to go
  • Inexpensive first cost method to bring in fresh air using an independent fan
  • No connection to HVAC system required
  • Compact design fits nearly everywhere
  • Mount in basement, attic, equipment closet, garage, laundry room, etc.
  • 6″ round duct connections for virtually unlimited duct length
  • Suitable for single & multi-family projects

SET UP
Dial in the desired airflow from 30 to 130 CFM (40 to 120 for QFAM), Turn it On

VERIFICATION
Includes easy access test port and unit mounted airflow chart

COMPLIANT

  • Excellent ASHRAE 62.2 solution for fresh air (learn more)
  • HVI Certified performance
  • ETL listed

FEATURES

  • Nearly silent operation, homeowner may not even know it is operating

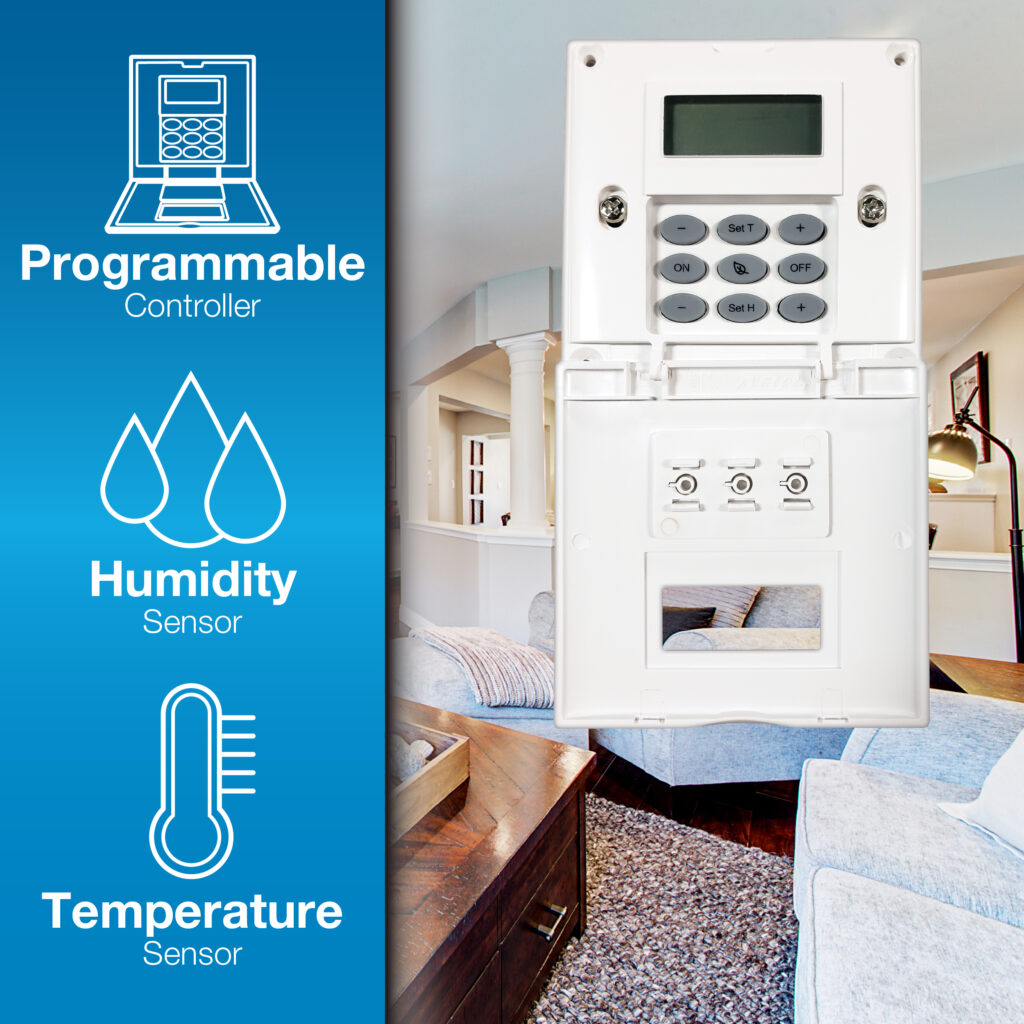

  • Programmable to prevent temperature & humidity extremes

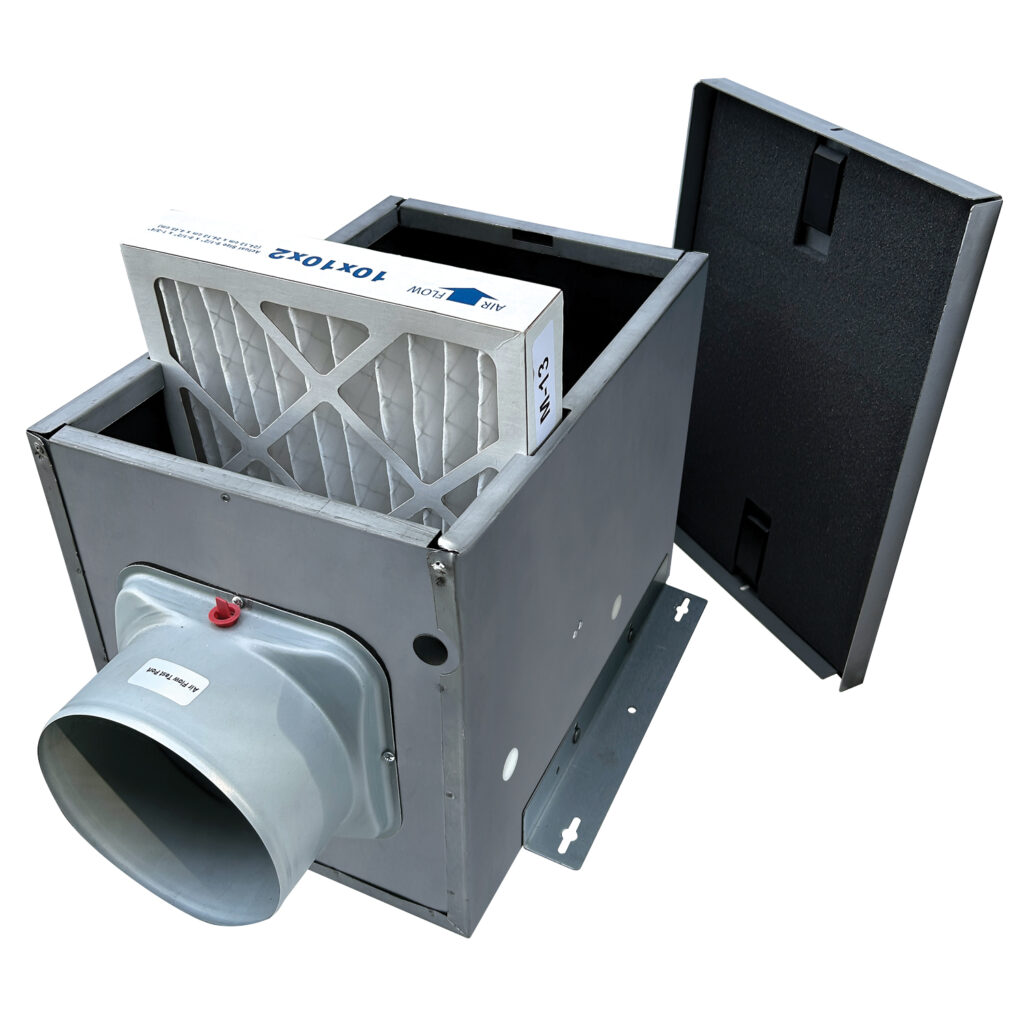

  • Accepts 10″ x 10″ x 2″ MERV16 filter through easy access filter door
  • Unit mounted “off” switch
  • White epoxy finish

MEETS MADE IN AMERICA REQUIREMENTS OF ARRA

This product meets the Made in America requirements of the American Recovery and Reinvestment Act as a manufactured Good. To download the Guidance PDF

Models QFAMD QFAM
Specification Sheet Download QFAMD QFAM
CFM Settings @ 0.2″ SP Variable 30 – 130 40, 50, 60, 70, 80, 90, 100, 110, 120
Motor 4 Pole ECM 4 Pole
Achievable CFM at other SP levels See Specification Sheet See Specification Sheet
Sones N/A N/A
Sound Level Very Quiet Very Quiet
Maximum Fan Watts 33.6 33.6
ASHRAE 62.2 Ventilation Fresh Air Supply Fresh Air Supply
ENERGY STAR® certified Yes No
Can be used to Comply with California Title 24 requirements N/A N/A
CALGreen N/A N/A
Duct Size 6″ round 6″ round
Collar Metal Metal
Mounting Mounting Bracket Mounting Bracket
Housing Metal Metal
Dimensions QFAM

What is included with the unit?

Insulated 26 gauge baked epoxy housing

Blower (motor)

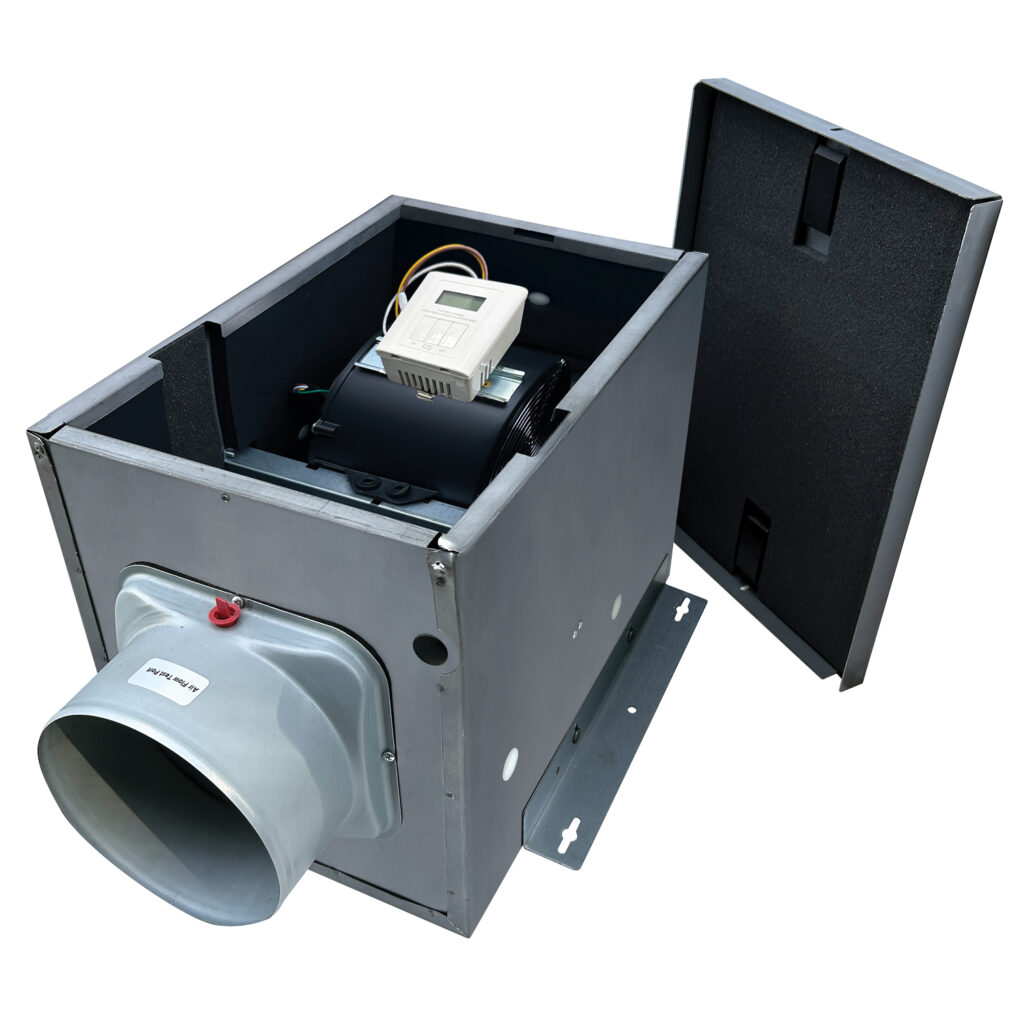

Unit mounted controller

Hanger brackets for surface mounting

Duct collars

User manual

Suggested Accessories (available separately)

10″ x 10″ x 2″ MERV16 air filter

Ceramic Heater

Motorized Damper with QMDB
