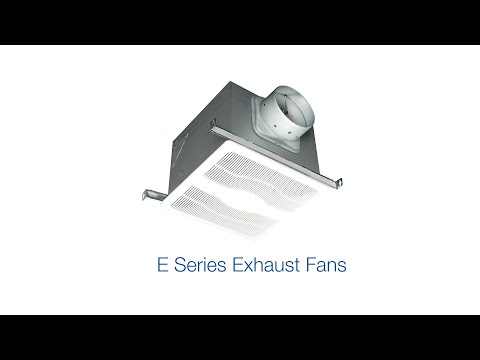

Air King’s ENERGY STAR® certified ECO exhaust fans provide efficient and effective ventilation at barely audible sound levels for bathrooms, laundry rooms and other areas of your home needing ventilation. The energy efficient motor is suitable for continuous operation and can be used to comply with ASHRAE 62.2 standards. The unit easily installs using the included adjustable hanging brackets and the 6 inch round metal duct connector with gasketed damper protects against backdrafts and seals the duct better than any other damper on the market today. The white, low profile plastic grill is unobtrusive and complements almost all decors. A side access panel allows you to wire the fan from inside or outside the housing. The ECO series fans are UL listed for installation over a tub or shower on a GFCI circuit and are HVI Certified.
Excellent ASHRAE 62.2 solution (learn more)
ENERGY STAR® certified (learn more)
Can be used to comply with California Title 24 requirements (learn more)
Can be used to comply with the ventilation standards required by LEED for Homes (learn more)
ECO exhaust fans easily install using the included adjustable hanging brackets.
UL listed for installation over a tub or shower on a GFCI circuit.
6 inch round duct connector with gasketed damper protects against backdrafts and seals the duct better than any other damper on the market today.
Side access panel allows you to wire the fan from inside or outside the housing.
HVI Certified performance.
This product meets the Made in America requirements of the American Recovery and Reinvestment Act as a manufactured Good. To download the Guidance PDF
| Models | E80S | E110S | E130S | |
|---|---|---|---|---|
| Specification Sheet Download | E80S | E110S | E130S | |
| CFM @ .1 SP | 80 | 110 | 130 | |
| CFM @ .25 SP (Boost) | 84 | 111 | 113 | |
| Sones @ .1 SP | <0.3 | <0.3 | <0.3 | |
| Boost Speed (CFM/Sones) @ .1 SP | 110 / 0.7 | 150 / 0.7 | 150 / 0.7 | |
| Sound Level | Very Quiet | Very Quiet | Very Quiet | |
| Maximum Power Watts | 37.0 | 37.0 | 37.0 | |
| Effective Ventilation Area | 80 to 100 sq. ft. | 110 to 135 sq. ft. | 130 to 160 sq. ft. | |
| ASHRAE 62.2 Ventilation | Whole House/ Local | Whole House/ Local | Whole House/ Local | |
| ENERGY STAR® certified | YES | YES | YES | |
| Can be used to comply with California Title 24 requirements | YES | YES | YES | |
| CALGreen | Rooms other than bathrooms | Rooms other than bathrooms | Rooms other than bathrooms | |
| Duct Size | 6″ round | 6″ round | 6″ round | |
| Collar / Damper | Metal | Metal | Metal | |
| Mounting | Hanger Bars | Hanger Bars | Hanger Bars | |
| Housing | Metal | Metal | Metal | |
| Dimensions |  |
|||
Exhaust Fan Housing
Blower (motor)
Hanger Bars for Mounting
Damper and Duct Collar
Grill
User Manual
