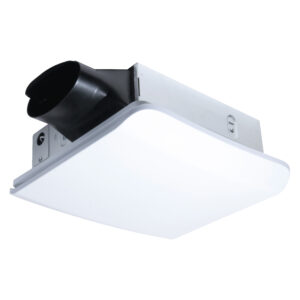

Air King’s ENERGY STAR® certified Variable Speed ECO Motion and Humidity Sensing Exhaust Fan solutions provide barely audible sound levels with effective and efficient automated ventilation.
Excellent ASHRAE 62.2 solution (learn more)
ENERGY STAR® certified (learn more)
Can be used to comply with California Title 24 requirements as well as CALGreen (learn more)
Can be used to comply with the ventilation standards required by LEED for Homes (learn more)
Integrated motion sensor detects when the room is occupied and turns the fan on. Once the room is vacated, the fan continues to run for a preset amount of time to make sure proper ventilation has occurred. Sensor can be set from 30 seconds to 80 minutes.
Integrated humidistat senses the humidity level of the room and turns the fan on until the humidity level is below the preset percentage. Humidity level can be set up to 80% relative humidity.
8 capacity settings on low speed allow the fan to be set to the required exhaust rate for continuous ventilation. Low speed set points include: 30, 40, 50, 60, 70, 90, 100 & 120 CFM
High-speed rapidly clears the air of moisture, odors or other contaminants. High-speed set points include: 80, 110, 130 CFM & Boost
The variable speed ECO motion and humidity sensing exhaust fan easily installs using the included adjustable hanging brackets.
UL listed for installation over a tub or shower on a GFCI circuit.
6″ round duct connector with gasketed damper protects against backdrafts and seals the duct better than any other damper on the market today.
Side access panel allows you to wire the fan from inside or outside the housing.
HVI Certified performance.
This product meets the Made in America requirements of the American Recovery and Reinvestment Act as a manufactured Good. To download the Guidance PDF click here.
|Specification Sheet Download||EVDGH|
|Low Speed CFM Settings @ .1 SP||30, 40, 50, 60, 70, 90, 100, 120|
|High-speed CFM Settings @ .1 SP||80, 110, 130 & Boost (150)|
|Achievable CFM at other SP levels||See Specification Sheet|
|Sones @ .1 SP||<0.3 (Boost Speed: 0.6)|
|Sound Level||Very Quiet|
|Maximum Fan Watts||37.0|
|ASHRAE 62.2 Ventilation||Whole House/ Local|
|ENERGY STAR® certified||YES|
|Can be used to Comply with California Title 24 requirements||YES|
|CALGreen||Compliant for use in bathrooms or whole building ventilation|
|Duct Size||6″ round|
|Collar / Damper||Metal|
