The Air King’s BFQ series SNAP-IN installation exhaust fans provide effective and affordable ventilation for your bathroom, laundry room, or other areas of the home needing ventilation. The motor is permanently lubricated, suitable for continuous operation and requires little to no maintenance. The Snap-In installation exhaust fans easily install using the included SNAP-IN mounting system and the 4 inch round plastic duct connector with damper protects against backdrafts. The white, low profile plastic grill is unobtrusive and complements almost all decors. The SNAP-IN installation exhaust fans are UL listed for installation over a tub or shower on a GFCI circuit and are HVI Certified. Available in multiple CFM levels to meet your ventilation needs.
Easily installs using the SNAP-IN Mounting System – Nail, Snap, Wire.
Able to be installed into 2 inch x 6 inch constructions.
Wire nuts and romex connector included with unit.
Plastic housing will not rust or corrode over time.
UL listed for installation over a tub or shower on a GFCI circuit.
4 inch round duct collar with a plastic damper protects against backdrafts and ensure quiet operation.
Available in contractor packs (4 housings and 4 trim kits).
HVI certified performance.
For energy efficient, ENERGY STAR® certified exhaust fan models – click here.
| Models | BFQ80 | BFQ90 | BFQ110 | BFQ140 |
|---|---|---|---|---|
| Specification Sheet Download | BFQ80 | BFQ90 | BFQ110 | BFQ140 |
| CFM @ .1 SP | 80 | 90 | 100 | 120 |
| Sones @ .1 SP | 2.0 | 3.0 | 3.5 | 5.0 |
| Sound Level | Quiet | Moderate | Moderate | High |
| Effective Ventilation Area | 80 to 100 sq. ft. | 90 to 115 sq. ft. | 100 to 125 sq. ft. | 120 to 150 sq. ft. |
| ASHRAE 62.2 Ventilation | Local | Local | – | – |
| ENERGY STAR® certified | No | No | No | No |
| Can be used to Comply with California Title 24 requirements | No | No | No | No |
| CALGreen | No | No | No | No |
| Duct Size | 4″ round | 4″ round | 4″ round | 4″ round |
| Collar / Damper | Plastic | Plastic | Plastic | Plastic |
| Mounting | SNAP-IN Bracket | SNAP-IN Bracket | SNAP-IN Bracket | SNAP-IN Bracket |
| Housing | ABS Plastic | ABS Plastic | ABS Plastic | ABS Plastic |
| Dimensions |  |
|||
Download Specification Sheet:
BFQ80 | BFQ90 | BFQ110 | BFQ140
Download the complete Ventilation Catalog

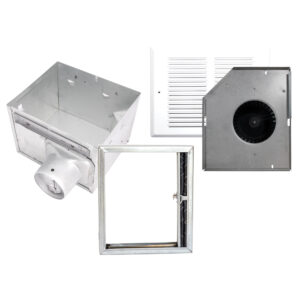

Exhaust Fan Housing
Blower (motor)
Grill
SNAP-IN Mounting Bracket
Damper and Duct Collar
User Manual
